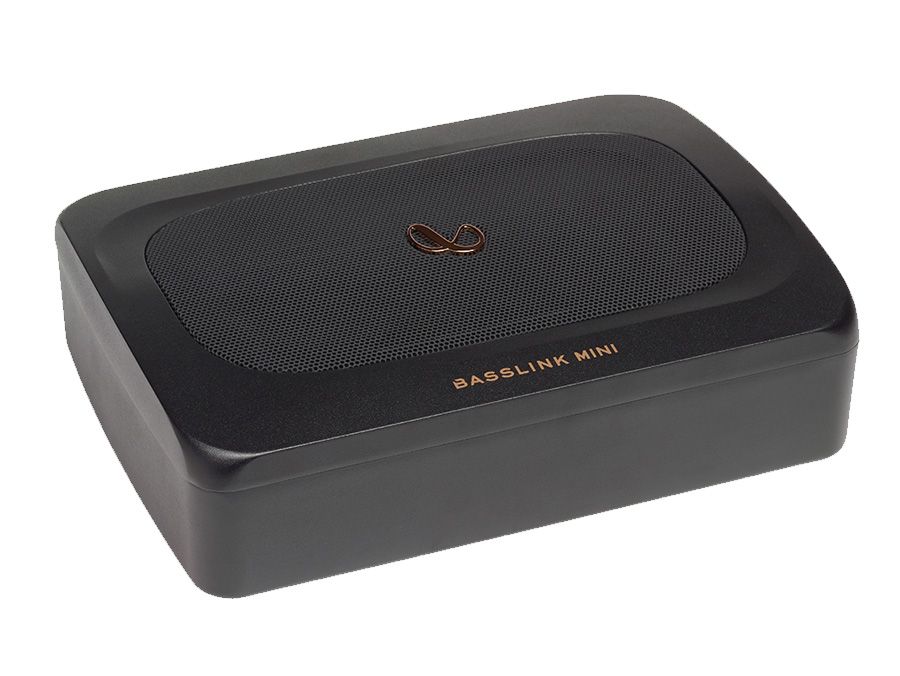

Infinity BASSLINK MINI Compact Under Seat Powered Subwoofer System

“Infinity BASSLINK MINI Compact Under Seat Powered Subwoofer System

Infinity BassLink MINI delivers deep bass and takes up little space. Infinity’s smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, Basslink MINI delivers accurate, tight bass you would expect from Infinity, all while running cool and drawing minimal current from your vehicles charging system.

Driver Complement
6″”x8″”(152mmx203mm) Subwoofer

Amplifier Power
100Wrms; 200W Max

Frequency Response
30Hz – 150Hz

Fuse
15A

Maximum Current Draw
13 A

Quiescent Current Draw
<600 mA

Input Sensitivity
0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input

Crossover Frequency
50 Hz – 150 Hz

Crossover Slope
12 dB/octave

Bass Boost
0dB to + 12dB @ 50Hz

Dimensions (L x W x H)
11-7/16"" x8-5/16"" x 3"" (289.6mm x 209.6mm x 75.0mm)

Weight
8.22 lbs (3.73kg)"
